10Pc Micro Usb Charging Module TP4056

The Micro USB Charging Module is a compact and efficient charging board designed for lithium-ion and lithium-polymer (LiPo) batteries. It features a TP4056 charging IC and protection circuits, making it ideal for DIY electronics, battery-powered projects, and embedded systems.

Key Features:

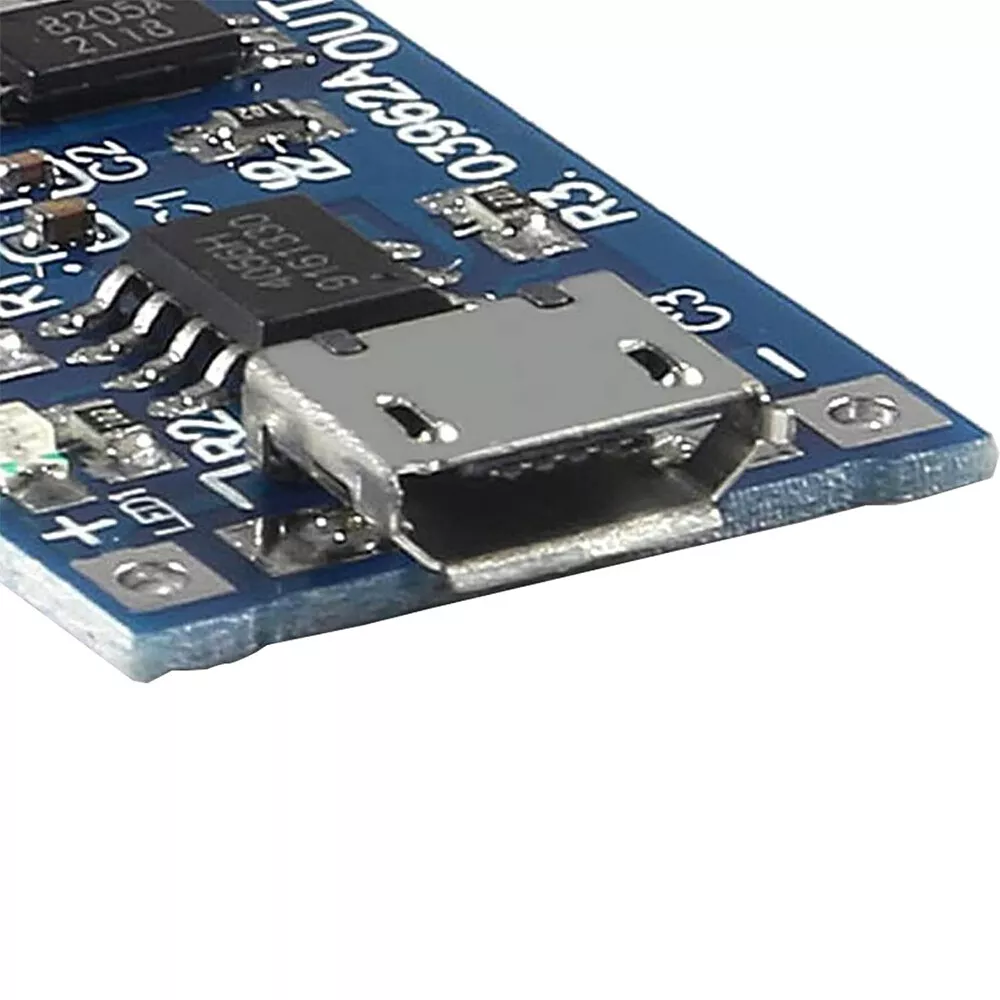

• Micro USB Input: Allows easy charging via standard USB cables.

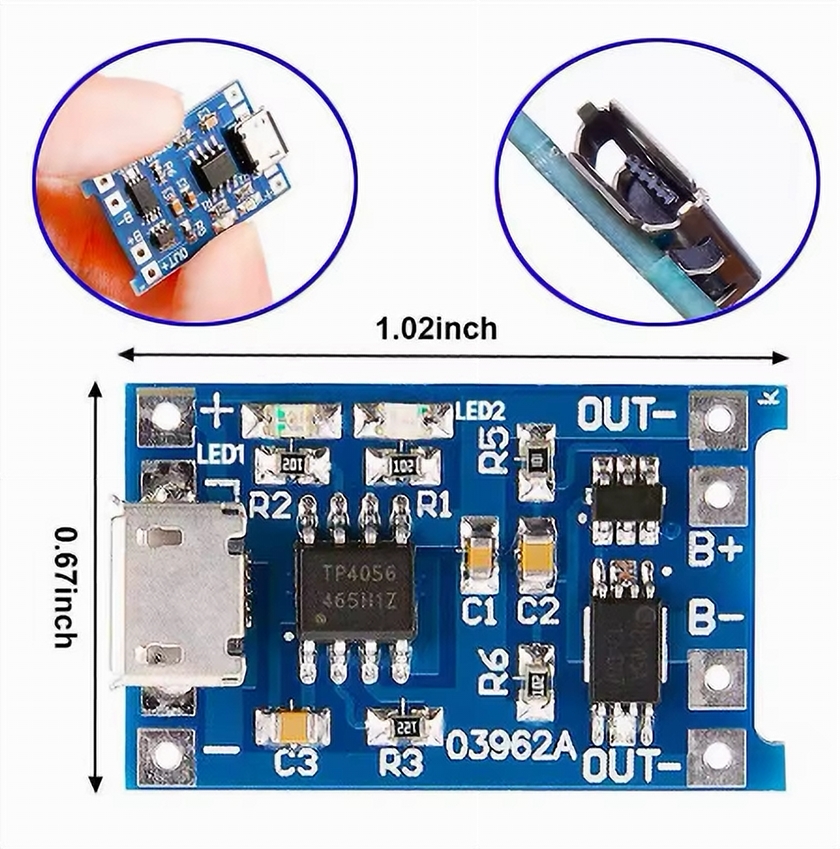

• TP4056 Charging IC: Provides stable and controlled charging with a constant current/constant voltage (CC/CV) mechanism.
• Battery Protection (Optional – DW01 & FS8205A): Prevents overcharge, over-discharge, and short circuits, ensuring battery safety.

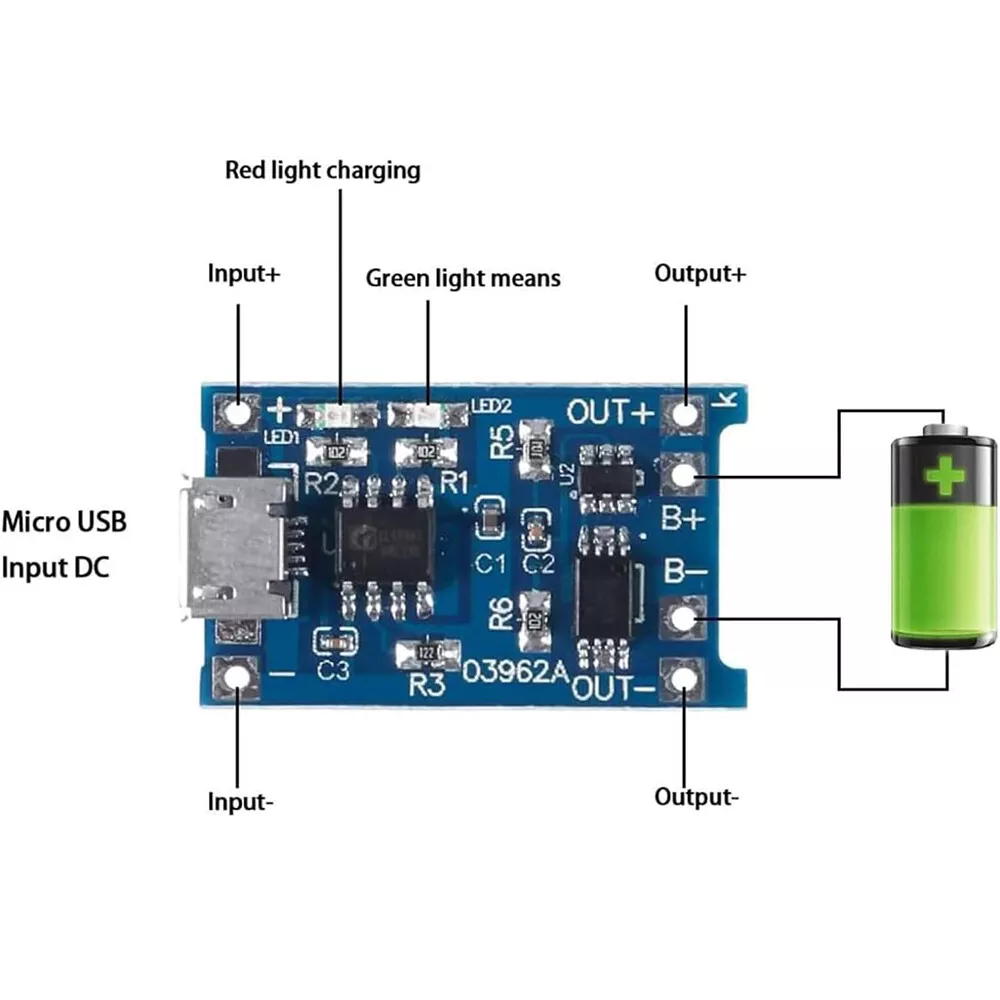

• LED Indicators:
  • Red LED: Charging
  • Blue/Green LED: Fully Charged
• Adjustable Charging Current: Default 1A but can be modified by changing the onboard resistor.

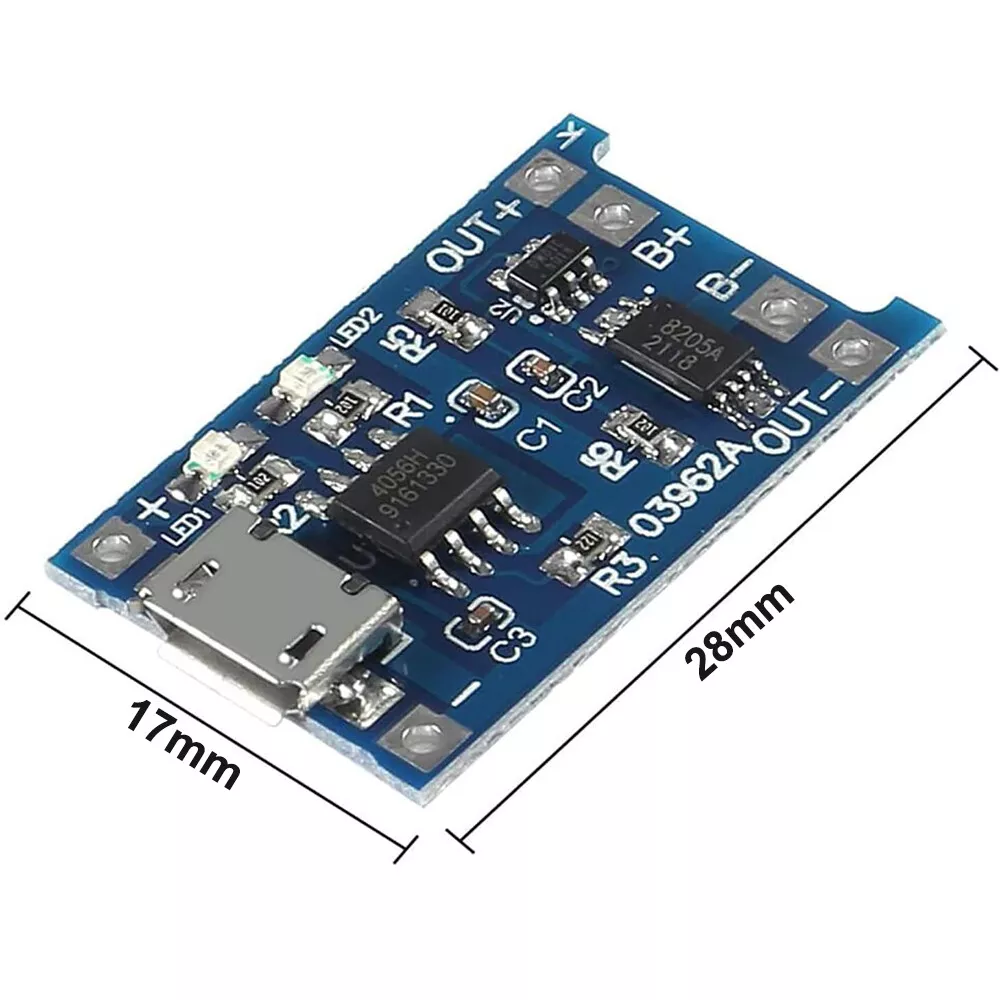

• Compact Size: Small footprint, easy to integrate into various applications.

Applications:

• DIY power banks
• Portable devices
• IoT projects
• Battery-powered electronics

This module is perfect for those looking for a simple and cost-effective way to charge single-cell Li-ion batteries safely and efficiently.
